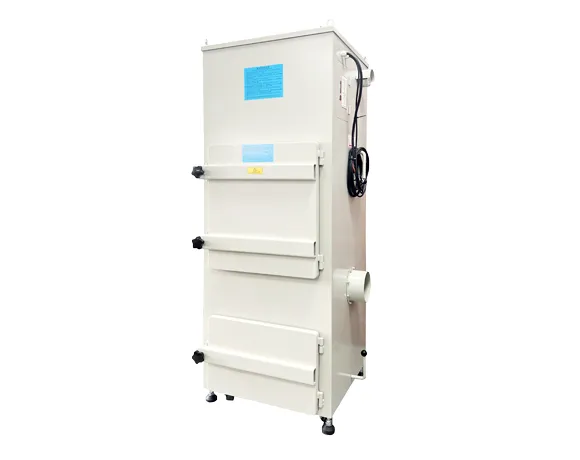

5HP heavy-duty independent lower dust collector.
Collect falling PCB scraps, edge waste and sinking dust fully enclosed structure.
No dust leakage, no secondary dust emission, stable 24-hour continuous operation.
Main Features
5HP high power strong suction
Upper and lower separate & independent system
Can be used alone or as a complete set
Compatible with all PCB depaneling router machines
Dust collector motor | Lower（3HP） |
voltage | three-phase AC 380V 50/600HZ |
power | 2.2KW |
Inlet air volume | 28m³/min |
Inlet wind speed | 26m/s |
Inlet diameter | 150mm |
export diameter | 200mm |
Bag material | 100%POLYESTER Needled felt, not woven fabric |
Bag size/quantity | 120mm*620mm(Double-headed 8-piece set) |
noise | ＜78db |
Dimensions | 763mm*755mm*1823mm |
weight | 165KG |
Dust collector motor | Lower（5HP） |
voltage | three-phase AC 380V 50/600HZ |
power | 4KW |
Inlet air volume | 35m³/min |
Inlet wind speed | 32m/s |
Inlet diameter | 150mm |
export diameter | 200mm |
Bag material | 100%POLYESTER Needled felt, not woven fabric |
Bag size/quantity | 120mm*850mm(Double-headed 12-piece set) 120mm*800mm（Single-head 4-wire） |
noise | ＜78db |
Dimensions | 763mm*755mm*1823mm |
weight | 165KG |
