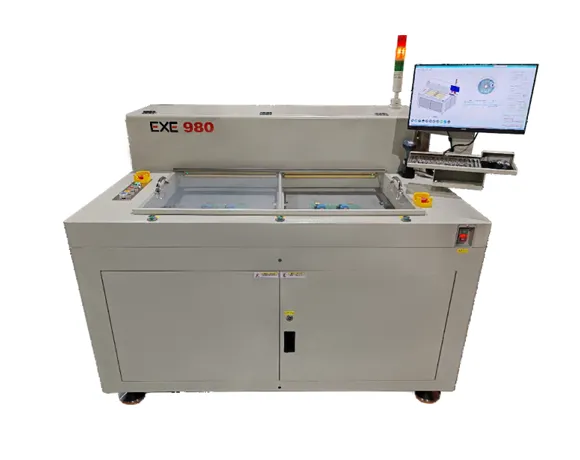

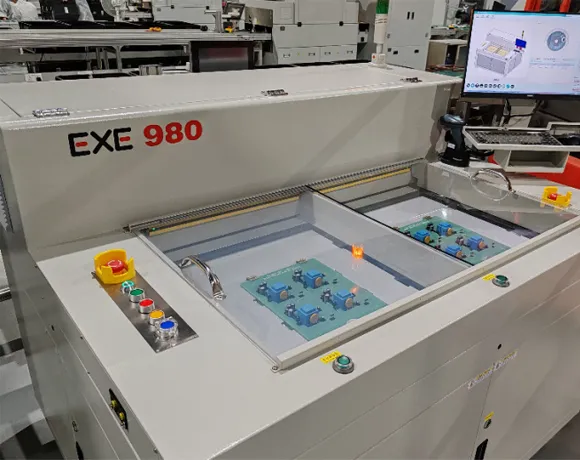

EXE 980 Offline Lower-cutting PCB Depaneling Machine features a high-precision CCD vision-guided PCB depaneling system, driven by AC servo motors with a dedicated CNC controller, ensuring high-speed processing, excellent stability, and accurate cutting performance.
Intuitive teach-in programming based on color CCD images, combined with a high-resolution vision calibration system, achieves ±0.01mm alignment accuracy, delivering reliable and intelligent operation control.

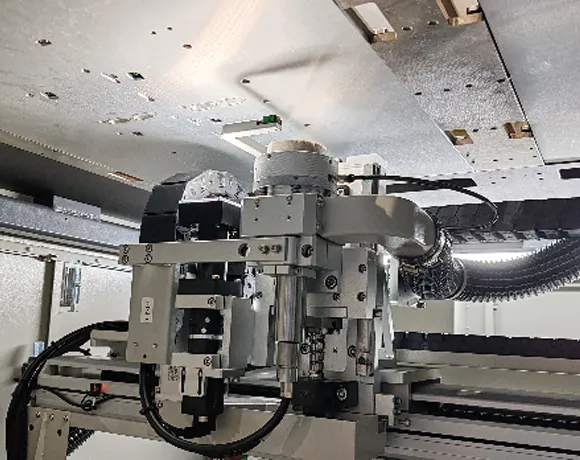

Equipped with a Japan NSK 60,000 RPM high-speed spindle, a vacuum dust extraction system, and a safety protection design, the machine enables low-stress cutting, high efficiency, and stable PCB depaneling performance.

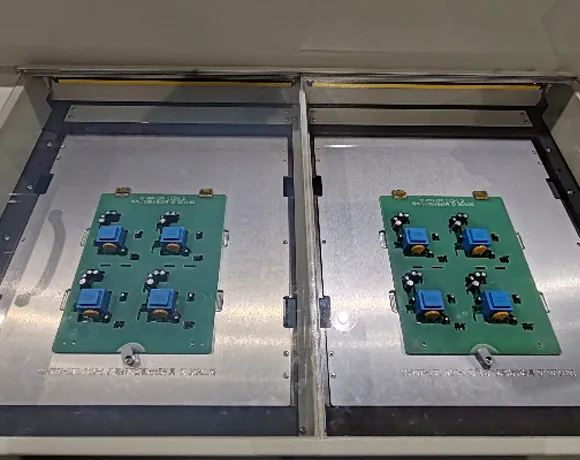

Dual-workbench structure, with left and right workbenches driven by servo motors and screw guide rails, featuring fast processing speed, high production efficiency, strong stability, and significantly improved processing capacity.

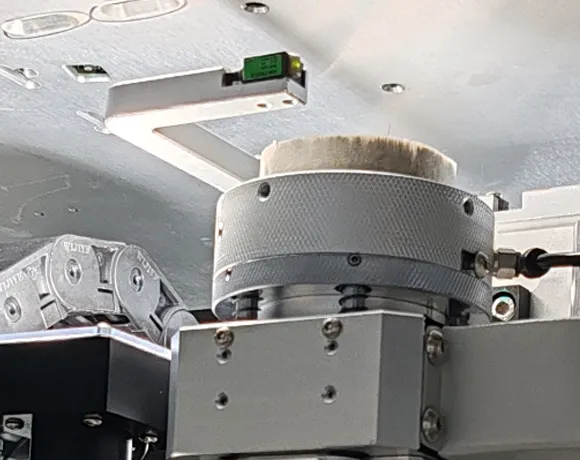

The milling cutter detection system uses photoelectric sensors to monitor the status of the milling cutter in real time, effectively preventing situations such as the machine continuing to operate after the cutter breaks.

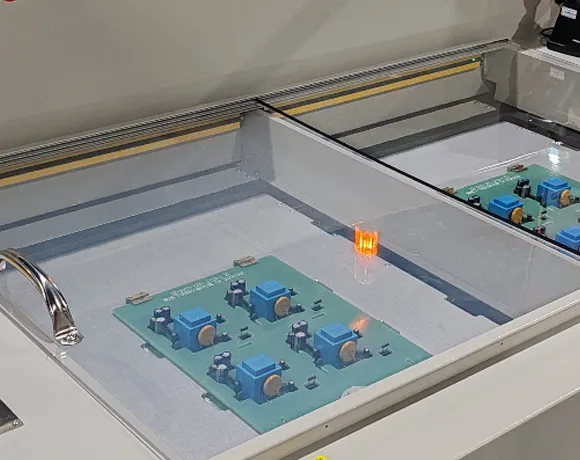

Safety gratings are installed in the PCB handling areas of the dual-workbench systems to prevent manual errors and ensure compliance with public safety requirements.

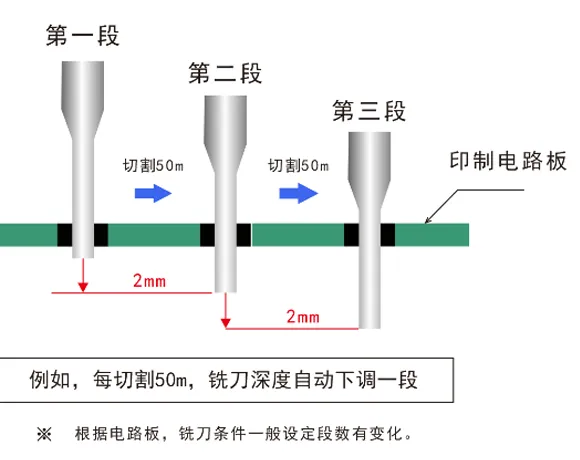

Software-enabled segmented milling cutter functionality automatically adjusts cutting depth after each segment is exhausted, extending tool life and reducing costs.

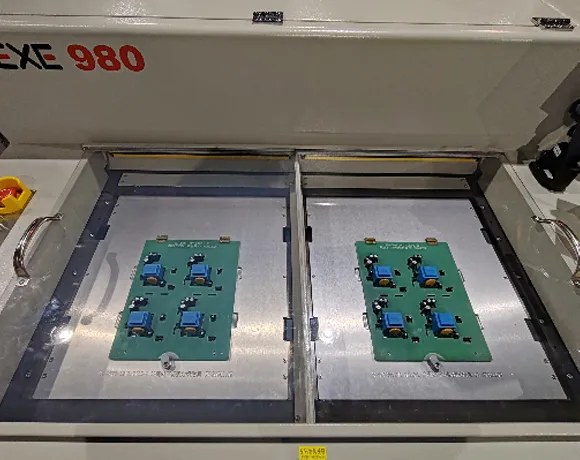

Dust-proof and drop-proof safety sliding door effectively prevents dust and foreign objects from falling, providing enhanced protection for products.

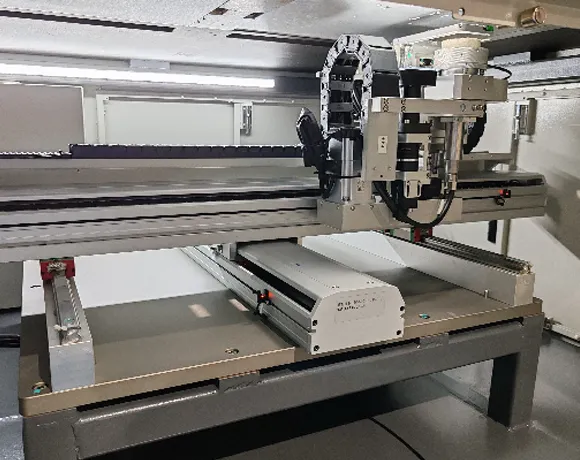

The main frame adopts a platform horizontal motion modular structure with separate board cutting, ensuring high stability.

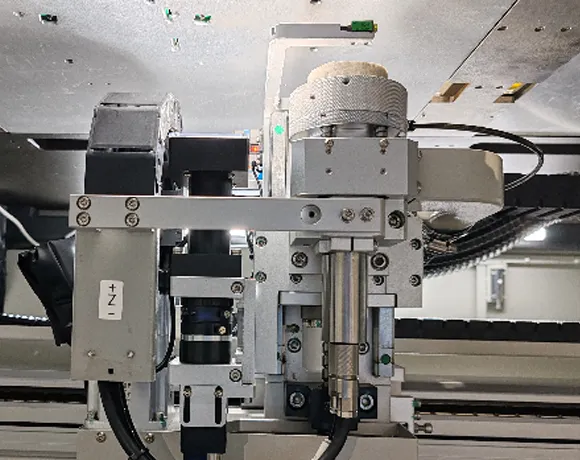

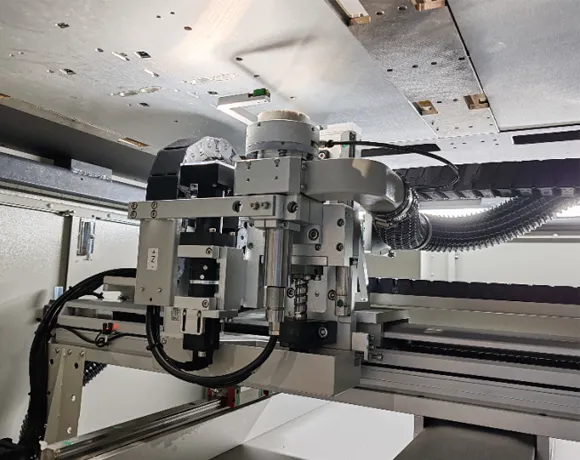

Features an imported Japanese NSK high-speed spindle (Max: 60,000 RPM), delivering low cutting stress, high precision, and enhanced cutting efficiency. Manual tool change enables full automation.
The main structure employs an integrated cast platform, featuring motion modules and board separation cutting for high stability.

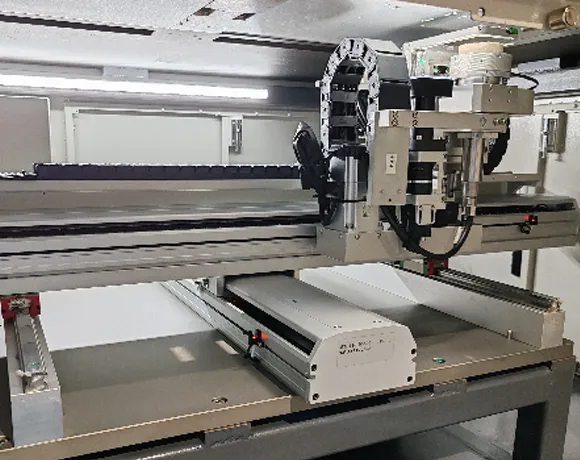

Features a platform horizontal structure with excellent symmetry, high stability, and outstanding rigidity.

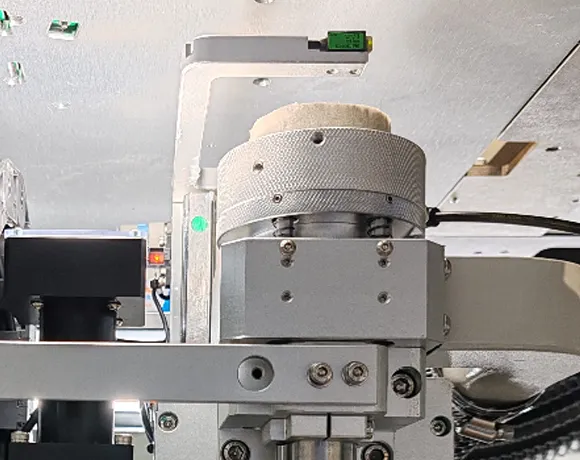

The floating brush structure automatically adjusts to optimize dust collection for varying panel thicknesses and component heights, extending cutter life.

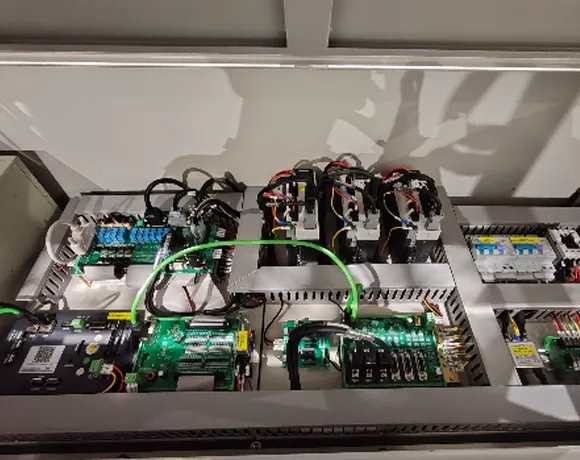

Electrical wiring is logically routed for easy maintenance and servicing.
