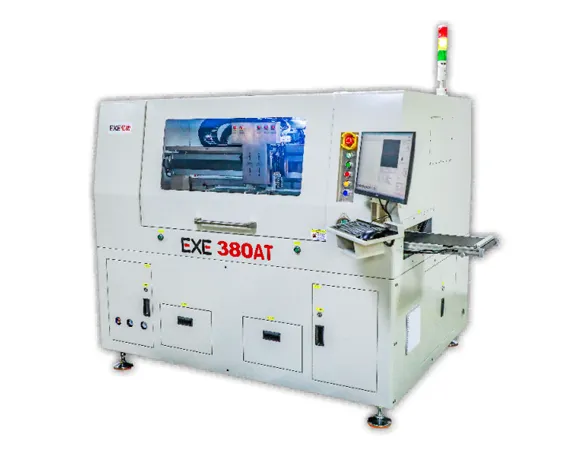

𐄀 Focus on providing PCBA separator manufacturing process solution
| Panel cutting dimensions | 50*50 – 350*450 mm |
| Panel cutting thickness | 0.4 – 3.6 mm |
| Panel cutting speed | 0 – 200 mm/s |
| Product accuracy | ±0.5 |
| Power supply | 220V, 4KW |
| Accuracy control | CCD camera positioning, mark calibration |
| Dust removal method | Upper/lower dust removal |
| Cutting motor power | 800W |
| Product jig inspection | Available |
| Cutting motor speed | 13,000 revolutions per minute |
| Number of platforms | 2 |
| Panel cutting method | Toothed blade |
| Automatic blade adjustment | Available |
| Equipment dimensions | L1065*W1065*H1520 |

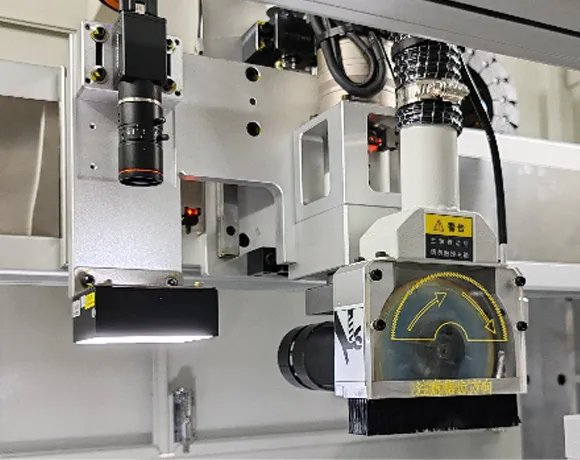

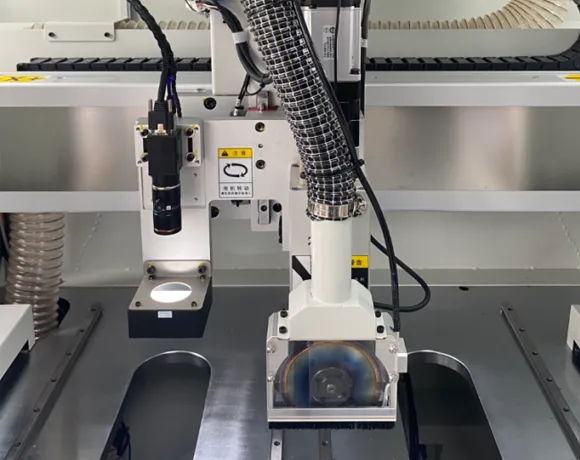

Equipped with a high-power, high-speed spindle for stable cutting and smooth edges, enabling 90-degree rotational cutting.

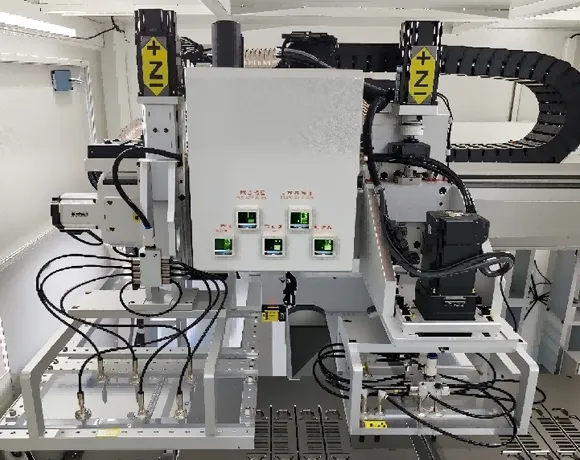

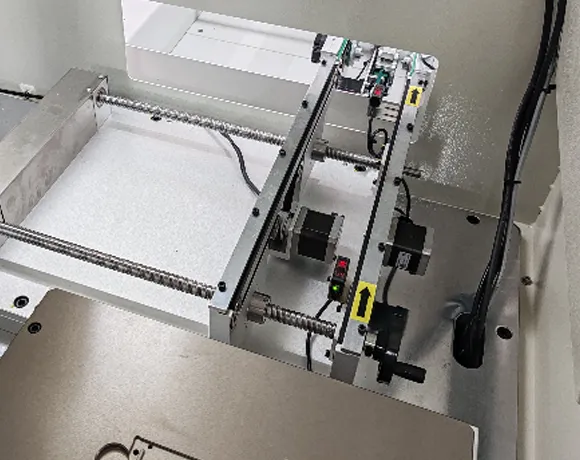

Rail-guided sheet feeding, automatic product pickup to the cutting platform, and fully automated production with no manual intervention required.
Seamlessly connects to subsequent processes such as in-line tray loaders, robotic arms, dimensional inspection machines, and automatic programming stations.

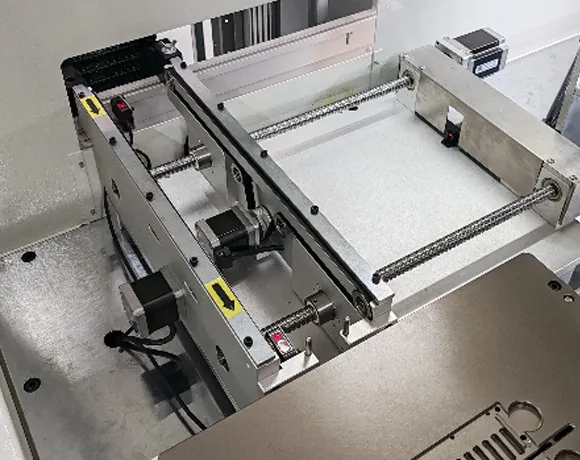

Online rail-mounted clamping fixture automatically senses whether the board separation fixture is in place, automatically clamps the fixture, and ensures more stable cutting.

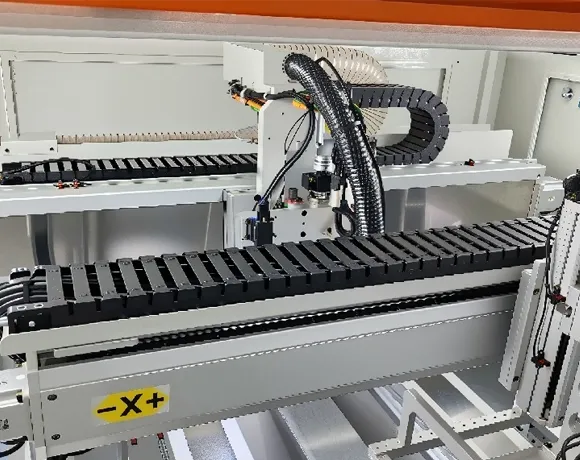

Features a gantry horizontal structure with excellent symmetry, high stability, and outstanding rigidity.
