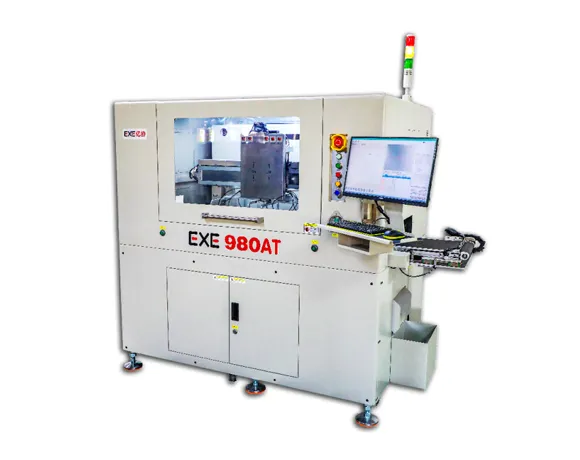

𐄀 Focus on providing PCBA separator manufacturing process solution
| Panel separation working range | 400mm x 350mm |
| XYZ drive method | AC servo motors |
| Number of motion axes | 9 axes |
| Programming method | Color CCD image-based intuitive teaching input |
| Operating interface | Windows 10 operating system |
| Suction power | 5HP |
| Automatic Tool Change Cutting Spindle | Max 80000 rpm |
| X-Y AC Servo Speed | 0-1000 mm/sec |
| Z-axis AC servo speed | 0-800mm/sec |
| X-Y repeatability | ±0.01mm |
| Cutting accuracy | ±0.05mm |
| CCD camera calibration function | |
| Board separation stress value | Below 150με |
| Tool diameter | 0.8-3.0mm |
| PCB cutting thickness | 0.2mm-6.0mm |
| Main unit&dust collector voltage | 220V 1-phase or 3-phase |
| Power consumption | 3.5kVA |
| Static elimination gun | |
| Vision system | High-resolution digital camera |
| Drive motor | AC brushless servo motor |
| Mechanical Pick-and-Place Arm | Anti-static vacuum nozzle |
| Feeding Method | Rail conveyor |
| Discharging Method | Belt conveyor or carrier output or rail conveyor |
| Transfer Method | Vacuum nozzle suction transfer |
| Flow Direction | Left→Right,Right→Left(optional) |
| Program Backup | USB Interface |
| Control Method | Dedicated Controller |
| Dust Collection Cabinet Dimensions | 820mm x 550mm x 1600mm(D×W×H) |
| Machine Dimensions | 2000mm x 1350mm x 1600mm(D×W×H) |
| Main Unit+Dust Collector Weight | 1200 kg |

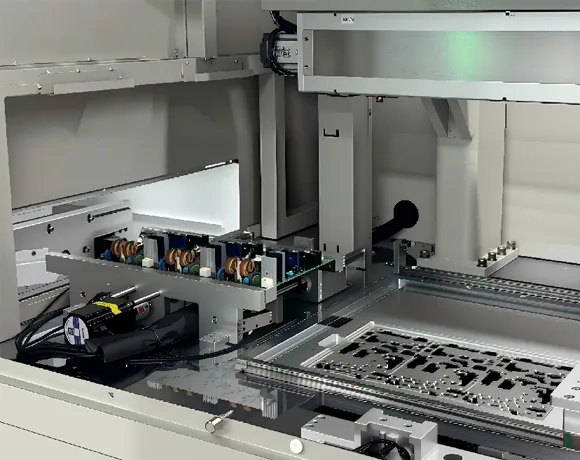

Products enter the track,where the pick-and-place shaft picks them up and places them onto the board separation fixture platform for separation

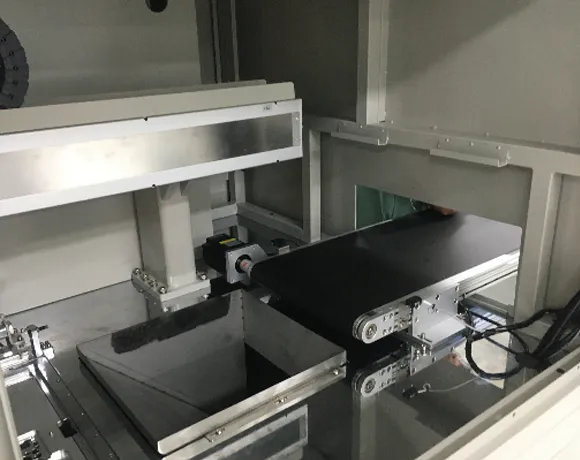

After processing,the take-up shaft picks up the material and places it onto the conveyor belt for discharge!

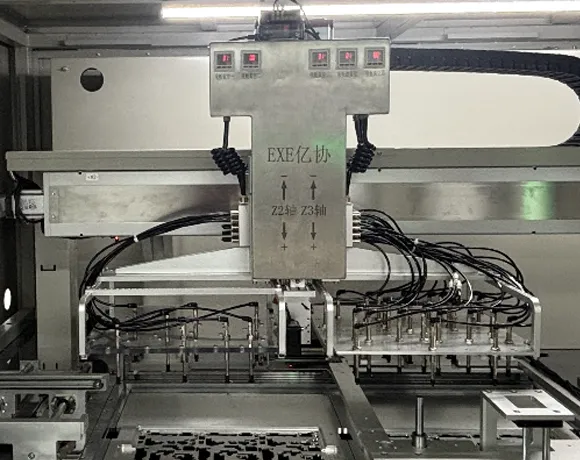

1.Handling Device:Automatic loading/unloading(modular vacuum grippers,vacuum unit,independently controllable)
2.Conveying Structure:X2-axis movement,Z2/Z3-axis suction,AC servo motor control.
3.Board Handling Speed:0-1000 mm/sec(configurable)

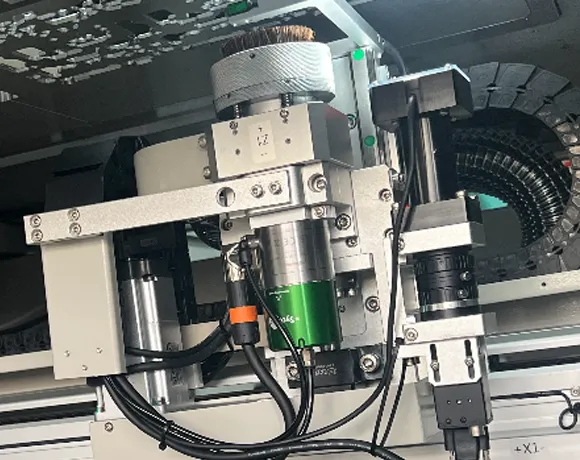

Adopts an automated tool changer system to achieve fully automated tool changes throughout the process, saving time, reducing human error, and delivering high precision and exceptional stability.

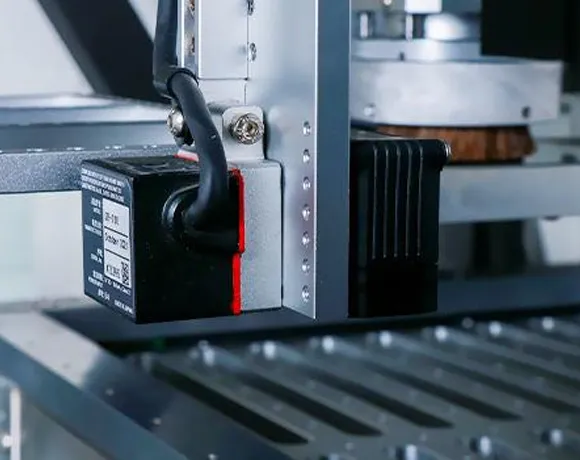

Standard PCBA product height measurement system, ensuring precise detection of vacuum-loaded boards in position.

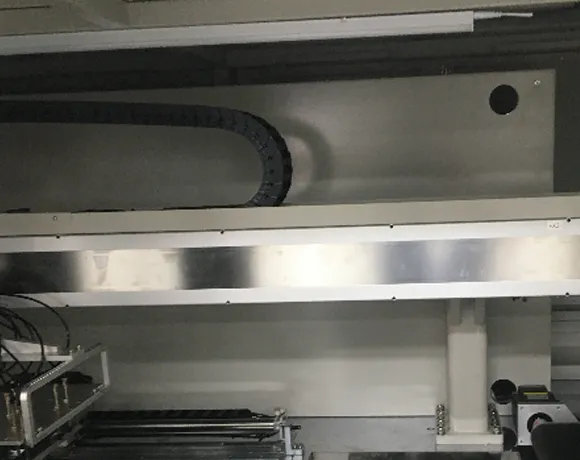

Features a gantry horizontal structure with excellent symmetry, high stability, and outstanding rigidity.

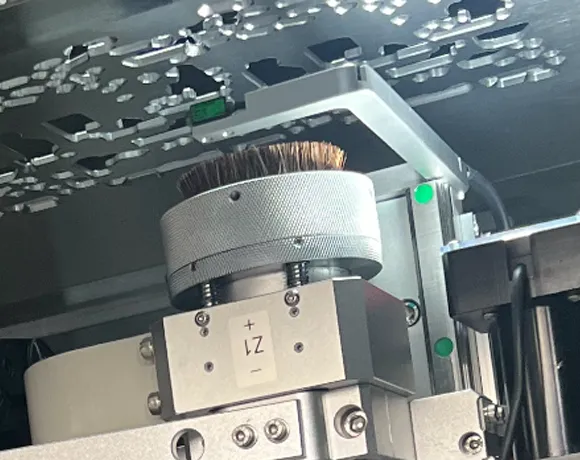

The floating brush design automatically adjusts to achieve the optimal dust-absorption effect, regardless of the thickness of the board or the height of the components, thereby extending the lifespan of the milling cutter.

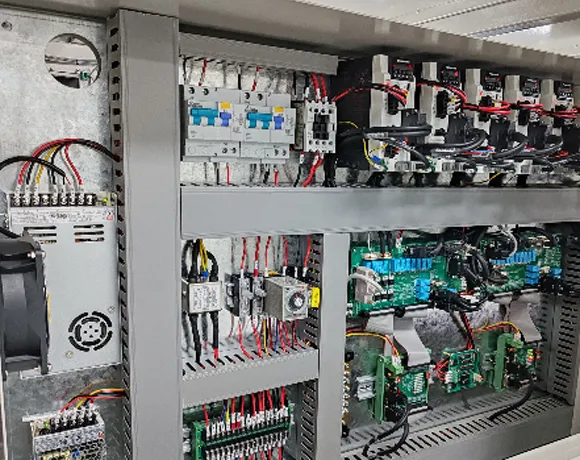

Reasonable wiring of electrical control circuits makes maintenance easy and convenient.
